Dialog Boxes

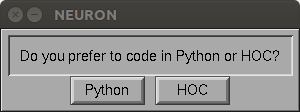

boolean_dialog()

Syntax:

h.boolean_dialog("label", ["accept", "cancel"])

Description:

Pops up a dialog window at the center of the screen and blocks everything until dealt with. Returns 1 or 0.

Example:

from neuron import h, gui

if h.boolean_dialog('Do you prefer to code in Python or HOC?', 'Python', 'HOC'):
    print('You prefer Python!')
else:
    print('You prefer HOC!')

See also

SymChooser, VBox.dialog()

---

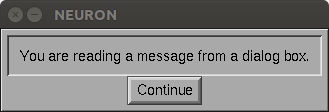

continue_dialog()

Syntax:

h.continue_dialog("message")

Description:

Provides information to the user. Like boolean_dialog(), blocks everything until dealt with.

Example:

from neuron import h, gui
h.continue_dialog("You are reading a message from a dialog box.")

---

string_dialog()

Syntax:

h.string_dialog("message", strref)

Description:

Prompts the user to enter a string. The initial value of strref is used as the default value. If canceled, returns 0 and strref remains unchanged. Otherwise, returns 1 and strref is replaced with the entered text. Like boolean_dialog(), blocks everything until dealt with.

Example:

from neuron import h, gui

my_str = h.ref('')
if h.string_dialog('Type a string:', my_str):
    print('You typed: %s' % my_str[0])
else:
    print('You canceled')
