Whichever it is, be sure to check units before you compile! Even the simplest mechanisms can involve parameters and variables that have strange and confusing combinations of units. Unless you're very careful or very lucky, it is all too easy to write code that looks OK but produces results that are wrong by orders of magnitude because of a missing or incorrect conversion factor.
The modlunit utility is provided to help detect and correct such errors.
When you're ready to check mod files for consistency of units,
go to Start / Programs / NEURON
and select the item
modlunit
(I put shortcuts to all of NEURON's icons on my desktop,
so they're always just a double-click away).
This brings up a window that asks whether your mod files are in a previously used directory, or if you prefer to choose a new directory. For this example, click on the "Choose directory" button.

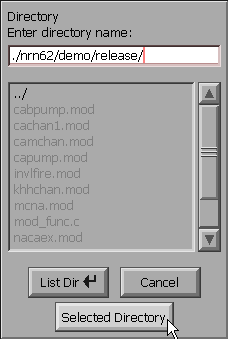

This makes NEURON's directory browser appear.
By clicking on directory names and/or direct entry of text
into the edit field at the top of this tool,
navigate your way to the directory that contains the
mod files of interest.
Note the UNIX-style path separator, i.e. / instead of
DOS's \ .
When you get to your destination (which is probably
different from what is shown in this figure),
click on the "Selected Directory" button.

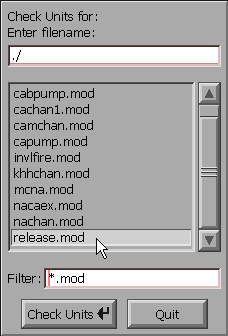

The directory browser changes to a file chooser that allows you to test individual mod files, one at a time. Double click on the mod file that you want to check (or you could single click on the mod file, and then click on the "Check Units" button). An xterm will flash up on the screen, and if everything is OK it will disappear after a second or so. Watch closely, because this can be very quick on a fast PC. After the xterm goes away, the file chooser remains so you can test additional mod files. When you're done with it, click on its Quit button.
For this particular example, I have chosen a mod file that illustrates what happens if modlunit detects a possible units inconsistency.

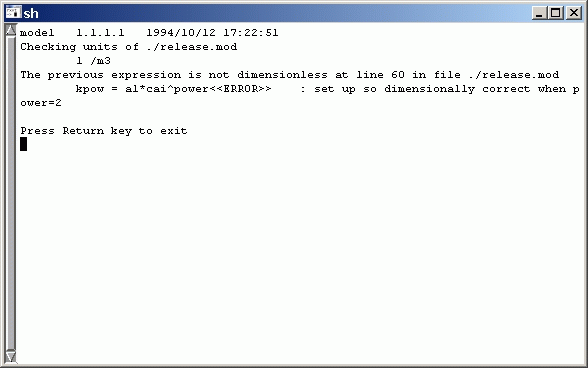

Feeding c:\nrn\demo\release\release.mod to modlunit generates this message. The DOS box stays on your monitor until you press the Return key.
FYI this particular mod file is really OK despite the rather intimidating message that is printed.
For instructions about how to fix units errors and how to define new units, read this.
Compiling mod files in NEURON 5.1 and later
After you're sure that units are consistent,
go to Start / Programs / NEURON
(or the desktop)
and select the item
mknrndll

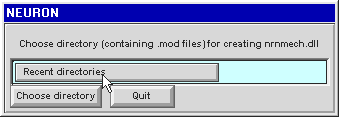

This brings up a window that asks whether your mod files are in a previously used directory, or if you prefer to choose a new directory. For this example, click on the "Recent directory" button.

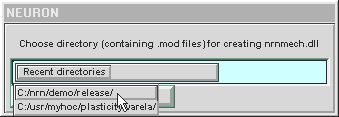

While holding down the mouse button, scroll down the list of recently used directories, and choose the one of interest. Release the mouse button . . .
. . . and the directory appears.
Check the names of the mod files to be sure this is the right directory. Also look for any files with the extension o . If an o file is present, mknrndll will know that the corresponding mod file has already been compiled once, and it will not recompile that mod file. To force compilation of all mod files, you must delete all o files.
This is one reason why you need to set Windows Explorer (the file manager) so that it shows all files, and all file extensions.
When you're happy with what you see, click on the "Make nrnmech.dll" button.

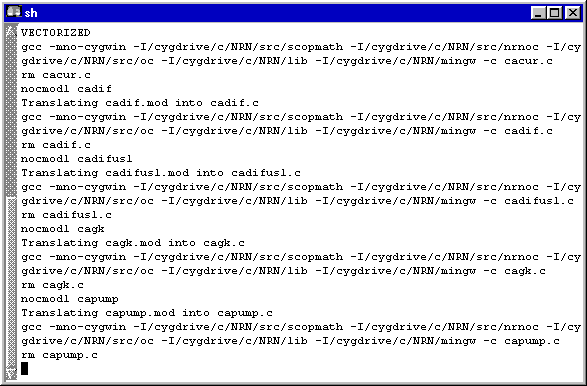

A console window will appear, displaying a slew of messages that scroll by. If all goes well (and it will, for this particular set of mod files), eventually the last message will appear, and the console window will go away on its own.

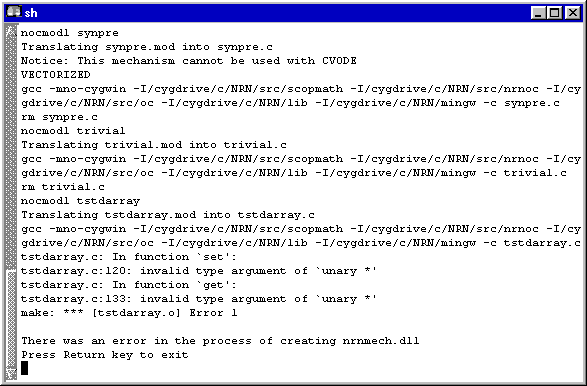

But I just had to include an example of an error.
When an error occurs, the window will stop scrolling, and an error message appears. Now you can drag the scroll bar (see left edge of the window) up and down to examine prior messages for possible clues.
This brings up a DOS box with the following message:
Welcome to the mknrndll DOS box!Use cd to change to the directory where your mod files are, and you're ready to use modlunit and mknrndll.
Navigate to the directory that contains your mod files,
then type
modlunit filename.mod
to check the units in filename.mod
or type
mknrndll
to create a new nrnmech.dll
Before typing the command
mknrndll
you should
look in the directory for any files with the extension o .
If an o file is present,
mknrndll will know that the corresponding mod file
has already been compiled once, and it will
not recompile that mod file.
To force compilation of all mod files, you must delete all o files.
When you're finished, just type
exit
on the command line of the DOS box, and it will go away.
