Ball-and-stick: 5 - Parallel Net

This is the final part of the series where we build a multicompartment cell and evolve it into a network of cells running on a parallel machine. On this page, we translate the classes we have previously constructed so that they operate in either a parallel or serial mode. NOTE: We demonstrate some necessary instructions for parallel implementation, but we do not deal with the particulars of MPI or parallel installation under a given hardware architecture.

Note

For this part of the tutorial, you will need an MPI installation, such as Open MPI or MPICH or Microsoft MPI. The code presented here was tested using MPICH. (On Ubuntu, install MPICH via: sudo apt install mpich). Furthermore, your copy of NEURON will need to have been compiled with support for parallel simulations; that is, the --with-paranrn flagged needed to be passed to the compiler. If you installed NEURON by downloading an installer from the website, it already has this support.

Parallel communication in NEURON

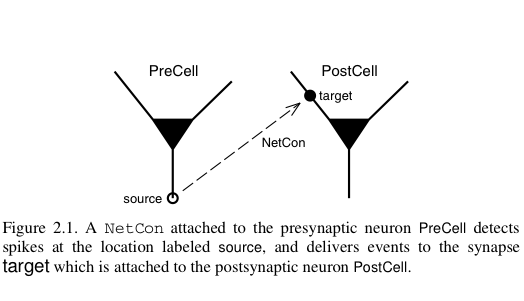

Parallel communication takes place via logical events in network connection objects known as NetCon. NetCon sources are threshold detectors. They monitor some variable, say the membrane potential of a cell, and when the variable reaches some threshold, it triggers an event sent to the targets. Targets are frequently synapses on other cells. When they receive the event, they activate.

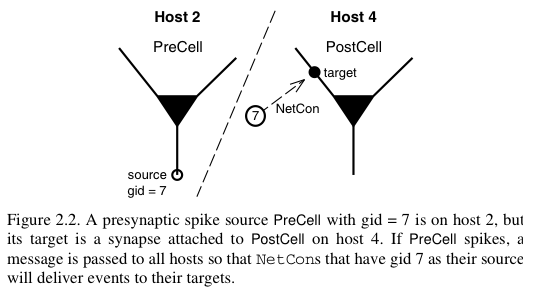

In a parallel context across several machines, communication between hosts can be computationally inefficient when the frequency of events is high and when the message being sent is large. NEURON uses an efficient priority queueing mechanism to deliver events to targets after the delay specified by the NetCon. The message passed is succinct. It is an integer, the unique global identifier (gid) of the source. The following two figures illustrate these ideas and come from Hines M.L. and Carnevale N.T, Translating network models to parallel hardware in NEURON, Journal of Neuroscience Methods 169 (2008) 425–455. Users should also consult the ParallelContext reference.

_images/parfig2.1.png _images/parfig2.2.png

The main step involved in making a parallel implementation is to assign the global identifiers across the various hosts. Care should also be taken to assign cells to the various hosts such that the system is load balanced. For example, in a network with computationally complex and simple cells, several simple cells may be assigned to a host while few complex cells may be assigned to another host.

Test MPI and Parallel NEURON

Parallel NEURON operates through MPI. Ensure that you have MPI and a Python interface to MPI, such as mpi4py. (In Ubuntu, you can setup this module via: sudo apt install python-mpi4py. On other platforms use pip install mpi4py, possibly with a sudo.)

Create a file called testmpi.py:

from mpi4py import MPI
from neuron import h
pc = h.ParallelContext()
id = int(pc.id())
nhost = int(pc.nhost())
print("I am {} of {}".format(id, nhost))

Run the script in parallel via e.g. mpiexec -n 4 python testmpi.py from the command line. You should see output resembling:

numprocs=4
NEURON -- VERSION 7.4 (1368:353c7c3ecd8d) 2015-04-03
Duke, Yale, and the BlueBrain Project -- Copyright 1984-2015
See http://www.neuron.yale.edu/neuron/credits

Additional mechanisms from files
 icaconst.mod
I am 3 of 4
I am 0 of 4
I am 1 of 4
I am 2 of 4

If instead, you see four processes claiming to be 0 of 1, then your copy of NEURON was not compiled with support for parallel simulation. Reconfigure with the --with-paranrn flag and recompile.

Import our modules

Begin by downloading ballandstick.py and cell.py into your working directory. These are equivalent to the classes we created in the previous part of the tutorial. You’ll also need simrun.py.

Let’s call our imports. When using MPI, we need to use a python interface to it. Here we use mpi4py, which must be imported before NEURON. Additionally, we have placed BallAndStick in a file that we now import. That is, in this example it is the network that we parallelize, not the cell models, so it is the Ring class that we modify.

import numpy
from mpi4py import MPI # Must come before importing NEURON
from neuron import h, gui
import simrun
import ballandstick
from matplotlib import pyplot

If we run this code directly via Python (either by copy-pasting it into a Python prompt or by saving it to a file and executing that file with python), we will see numprocs=1 indicating that MPI is initialized, but the number of processors is 1. This is because we did not call mpiexec from a shell. This is fine, and actually good. We can develop serially in this Python environment and then execute it later in parallel form.

Parallelize Ring class

When parallelized, every host is sent the same program, which makes its own Ring instance. This means that objects inside a particular instance of Ring also reside on a particular host. For example, in the serial implementation, cells was the list of all cell objects in the network. In parallel, cells is the list of cell objects on this host. There is no list of all of the cells in the network.

The following code demarcates new functionality with ‘####’. Most parallel functionality operates through a ParallelContext object. Look at how pc, the ParallelContext object, is used in the modification to Ring. Save this code as ring.py.

from neuron import h
import ballandstick
import numpy

class Ring:
    """A network of *N* ball-and-stick cells where cell n makes an
    excitatory synapse onto cell n + 1 and the last, Nth cell in the
    network projects to the first cell.
    """
    def __init__(self, N=5, stim_w=0.004, stim_spike_num=1, syn_w=0.01,
            syn_delay=5):
        """
        :param N: Number of cells.
        :param stim_w: Weight of the stimulus
        :param stim_spike_num: Number of spikes generated in the stimulus
        :param syn_w: Synaptic weight
        :param syn_delay: Delay of the synapse
        """
        self._N = N              # Total number of cells in the net
        self.cells = []          # Cells on this host
        self.nclist = []         # NetCon list on this host
        self.gidlist = []        # List of global identifiers on this host
        self.stim = None         # Stimulator
        self.stim_w = stim_w     # Weight of stim
        self.stim_spike_num = stim_spike_num  # Number of stim spikes
        self.syn_w = syn_w       # Synaptic weight
        self.syn_delay = syn_delay  # Synaptic delay
        self.t_vec = h.Vector()   # Spike time of all cells on this host
        self.id_vec = h.Vector()  # Ids of spike times on this host

        #### Make a new ParallelContext object
        self.pc = h.ParallelContext()

        self.set_numcells(N)  # Actually build the net -- at least the portion
                              # of cells on this host.

    def set_numcells(self, N, radius=50):
        """Create, layout, and connect N cells."""
        self._N = N
        self.set_gids() #### Used when creating and connecting cells
        self.create_cells()
        self.connect_cells()
        self.connect_stim()

    def set_gids(self):
        """Set the gidlist on this host."""
        self.gidlist = []
        #### Round-robin counting.
        #### Each host as an id from 0 to pc.nhost() - 1.
        for i in range(int(self.pc.id()), self._N, int(self.pc.nhost())):
            self.gidlist.append(i)

    def create_cells(self):
        """Create cell objects on this host and set their location."""
        self.cells = []
        N = self._N
        r = 50 # Radius of cell locations from origin (0,0,0) in microns

        for i in self.gidlist:
            cell = ballandstick.BallAndStick()
            # When cells are created, the soma location is at (0,0,0) and
            # the dendrite extends along the X-axis.
            # First, at the origin, rotate about Z.
            cell.rotateZ(i*2*numpy.pi/N)

            # Then reposition
            x_loc = numpy.cos(i*2*numpy.pi/N) * r
            y_loc = numpy.sin(i*2*numpy.pi/N) * r
            cell.set_position(x_loc, y_loc, 0)

            self.cells.append(cell)

            #### Tell this host it has this gid
            #### gids can be any integer, they just need to be unique.
            #### In this simple case, we set the gid to i.
            self.pc.set_gid2node(i, int(self.pc.id()))

            #### Means to tell the ParallelContext that this cell is
            #### a source for all other hosts. NetCon is temporary.
            nc = cell.connect2target(None)
            self.pc.cell(i, nc) # Associate the cell with this host and gid

            #### Record spikes of this cell
            self.pc.spike_record(i, self.t_vec, self.id_vec)

    def connect_cells(self):
        """Connect cell n to cell n + 1."""
        self.nclist = []
        N = self._N
        for i in self.gidlist:
            src_gid = (i-1+N) % N
            tgt_gid = i
            if self.pc.gid_exists(tgt_gid):
                target = self.pc.gid2cell(tgt_gid)
                syn = target.synlist[0]
                nc = self.pc.gid_connect(src_gid, syn)
                nc.weight[0] = self.syn_w
                nc.delay = self.syn_delay
                self.nclist.append(nc)

    def connect_stim(self):
        """Connect a spike generator on the first cell in the network."""
        #### If the first cell is not on this host, return
        if not self.pc.gid_exists(0):
            return
        self.stim = h.NetStim()
        self.stim.number = self.stim_spike_num
        self.stim.start = 9
        self.ncstim = h.NetCon(self.stim, self.cells[0].synlist[0])
        self.ncstim.delay = 1
        self.ncstim.weight[0] = self.stim_w # NetCon weight is a vector.

    def write_spikes(self, file_name='out.spk'):
        """Append the spike output file with spikes on this host. The output
        format is the timestamp followed by a tab then the gid of the source
        followed by a newline.

        :param file_name: is the full or relative path to a spike output file.

        .. note::

            When parallelized, each process will write to the same file so it
            is opened in append mode. The order in which the processes write is
            arbitrary so while the spikes within the process may be ordered by
            time, the output file will be unsorted. A quick way to sort a file
            is with the bash command sort, which can be called after all
            processes have written the file with the following format::

                exec_cmd = 'sort -k 1n,1n -k 2n,2n ' + file_name + \
                        ' > ' + 'sorted_' + file_name
                os.system(exec_cmd)
        """
        for i in range(int(self.pc.nhost())):
            self.pc.barrier() # Sync all processes at this point
            if i == int(self.pc.id()):
                if i == 0:
                    mode = 'w' # write
                else:
                    mode = 'a' # append
                with open(file_name, mode) as spk_file: # Append
                    for (t, id) in zip(self.t_vec, self.id_vec):
                        spk_file.write('%.3f\t%d\n' %(t, id)) # timestamp, id
        self.pc.barrier()

Test the net

Let’s make a net object and run a simulation.

import ring
my_ring = ring.Ring()

Warning

Since NEURON recognizes that we are running a (potentially) parallel simulation, it will not allow us to use its graphics (e.g. we cannot use a PlotShape to see the morphology). We can, however, use matplotlib’s graphics.

We are using a parallel context, but we are still operating with one host. Let’s see if the serial implementation still works.

soma_v_vec, dend_v_vec, t_vec = simrun.set_recording_vectors(my_ring.cells[0])
h.tstop = 100
h.run()
simrun.show_output(soma_v_vec, dend_v_vec, t_vec)
pyplot.show()
_images/ballstick17.png

We can write the spikes to disk:

my_ring.write_spikes('out.spk')

This creates a file out.spk, which for each spike lists the spike time and the cell number:

12.625      0
19.225      1
25.825      2
32.425      3
39.025      4
45.625      0
52.225      1
58.825      2
65.425      3
72.025      4
78.625      0
85.225      1
91.825      2
98.425      3

Running in parallel requires the following format.

def prun():
    pc = h.ParallelContext()
    pc.set_maxstep(10)
    h.stdinit()
    h.dt = 0.025 # Fixed dt
    pc.psolve(100)

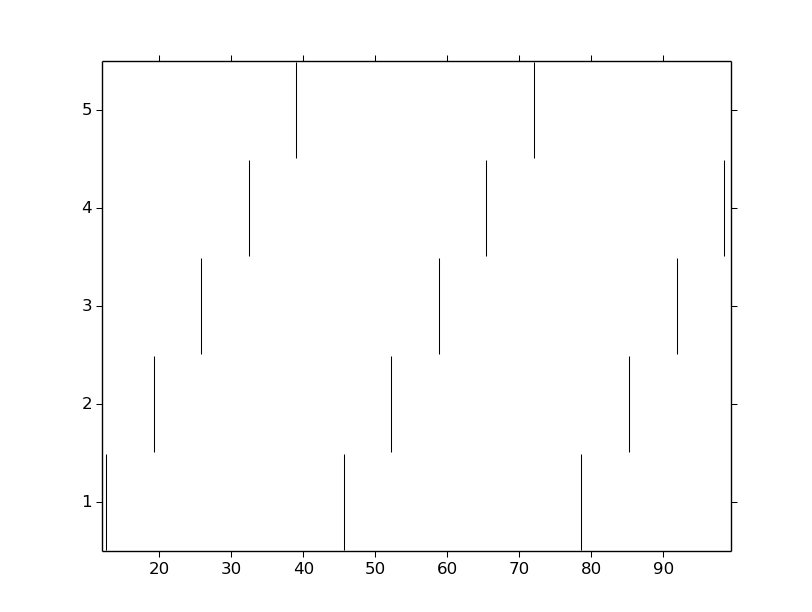

Let’s call prun(), output the spikes to a file, load all the spikes back in to process number 0, and plot the output spikes. The file IO is unnecessary for a serial program, but it is one way of transferring data that has to be saved to disk anyway in a parallel program.

prun()
myring.write_spikes('out.spk')
if not pc.id():
    spike_times = [[] for i in range(myring._N)]
    with open('out.spk') as f:
        for line in f:
            vals = line.split()
            spike_times[int(vals[1])].append(float(vals[0]))
    for i, spikes in enumerate(spike_times):
        pyplot.vlines(spikes, i + 0.5, i + 1.5, color='black')
    pyplot.show()
pc.barrier()
_images/ballstick18.png

Run parallel simulations

The previous run demonstrates a serial run using a ParallelContext object. Let’s now actually run some parallel simulations. To do this, we need to execute MPI from the command line and pass it some number of processors. This also means that the script that we want to submit is a file and the output of the run is also some set of files that are read later. The functionality we need is located in the file parrun.py. Download it, then execute it with 1 processor (from your system terminal not from Python) and make sure it works.

mpiexec -n 1 python parrun.py

You will notice that it made an output files: out.spk is a tab-delimited list of unsorted spike times and gids. Now let’s try with 3 processors.

mpiexec -n 3 python parrun.py

This concludes this series on ball-and-stick models.
