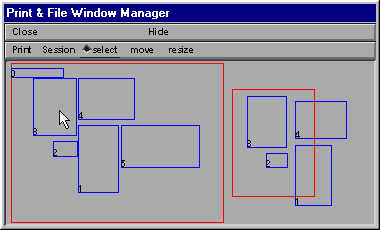

The Print & File Window Manager

Note the following:

menu bar with the items Print, Session, select, move, and resize.

red rectangle on left--a "virtual display" of the computer monitor, with numbered blue rectangles that correspond to NEURON's GUI windows.
In this particular example, the NEURON Main Menu and the PFWM are in the upper left and lower right corners of the virtual display.
red rectangle on right--used as a "page layout area" when printing

Make sure the radio button next to "select" is on. In the virtual display, select the GUI windows to save by L clicking inside their perimeters. The selected windows will appear in the page layout area.

To discard undesired windows, L click inside their perimeters in the page layout area.
